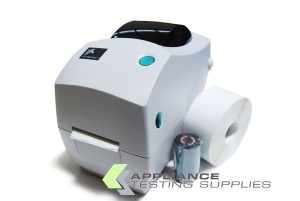

The ultra-compact TLP 2824 Plus™ bar code label printer, for print widths up to 2.2 inches/56 mm, brings powerful performance to applications requiring both direct thermal and thermal transfer printing. It includes a 32-bit RISC processor for faster formatting and first label out, an auto-sensing serial port, and co-resident EPL and ZPL programming languages. Available options include additional memory, 10/100 Ethernet, label peeler, and receipt/label cutter.

Its ease of use—including Zebra Setup Utilities software for simple setup, OpenACCESS™ design and clear media window for simple media loading and monitoring, and an instant reset button—results in increased workplace efficiency. Offering flexible connectivity and options, the TLP 2824 Plus fits easily into a variety of applications.

* Supplied with: Roll of 500 Labels & Thermal Ribbon

Printer Specification

Resolution - 203 dpi (8 dots/mm)

Memory - 8 MB SDRAM, 4 MB Flash

Print width - 2.2" (56mm)

Print length - 39" (991mm)

Print speed - 4" (102mm)/sec

Maximum label and liner width - 2.36" (60mm)

Minimum label and liner width - 1.00" (25.4mm)

Maximum label and liner length - 39" (991mm)

Maximum label and liner length (optional) - 39" (991mm)

Maximum roll diameter - 5" (127mm)

Core diameter - 1.0" (25.4mm) and 1.5" (38mm)

Media thickness - 0.003" (0.08mm) to 0.007" (0.18mm)



*Compatible with Wavecom & FASTTag Software

**Logo upload required for Wavecom Software - additional cost
